Product Name: CHSKY E-TEN1321 6-Pin Dual-Pole Toggle Switch
Appearance and Structural Features:
Overall Structure: This is a classic metal-bodied toggle switch with a rectangular metal base and a cylindrical metal toggle lever on top. The switch has 6 terminal blocks (pins) at the bottom, arranged in two rows.
Materials and Manufacturing:
Body: The main body is made of durable metal material (usually nickel-plated iron or stainless steel), with a shiny surface that provides good shielding and mechanical strength, effectively protecting the internal contacts.
Toggle Lever: Solid metal toggle lever with a firm feel and moderate operating force.
Insulator: Internally sealed with high-temperature resistant insulating material to ensure electrical safety.
Functional Design (Key Features):
6-Pin Terminals: The bottom has 6 soldered or screw-type terminals (the picture shows hole-type solder pads for easy wire soldering or screw fixation). This 6-pin design typically corresponds to a double-pole double-throw (DPDT) circuit structure, allowing simultaneous control of two independent circuits' on/off or switching.
Mounting Method: Uses threaded bushing mounting, along with the included nuts and washers, for secure installation on panels of moderate thickness.
Position Indicators: The panel is labeled with red and white "ON" indicator stickers, clearly indicating the switch's on/off position.
Model Identification: The side is clearly printed with the model "E-TEN1321" and electrical parameters "15A 250VAC".

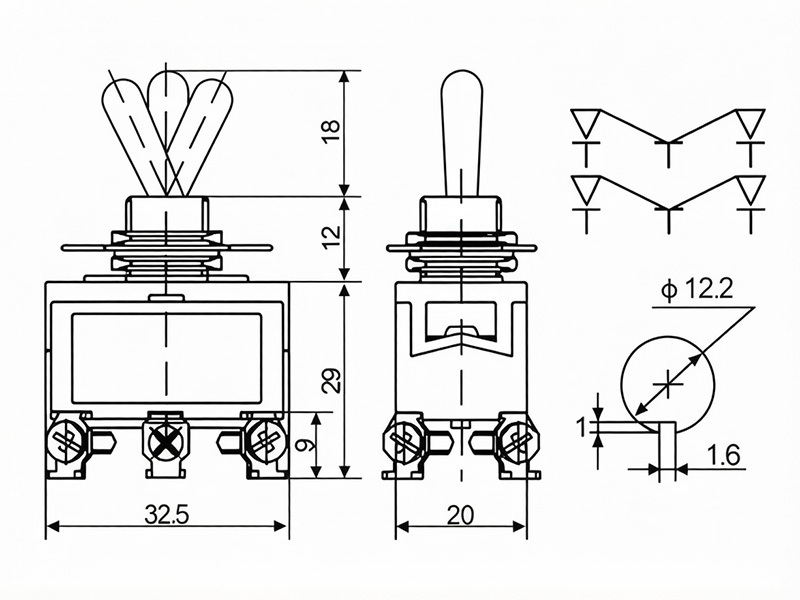

Dimension Specifications (Based on Drawing Markings):
Total Height: Approximately 59mm (including toggle lever: 18mm lever height + 12mm bushing height + 29mm body height).
Body Dimensions: Length 32.5mm × Width 20mm × Height 29mm.
Mounting Hole Diameter: Standard 12mm (drawing marks φ12.2mm).
Terminal Spacing: The bottom terminals are compactly arranged, suitable for conventional wiring space.
Electrical Characteristics:
Rated Current/Voltage: 15A / 250V AC. This means it can handle high current loads and is suitable for household appliances, power tools, or small industrial equipment.
|
|
CHSKY E-TEN1321 6-pin 2-position toggle switch Images
|
